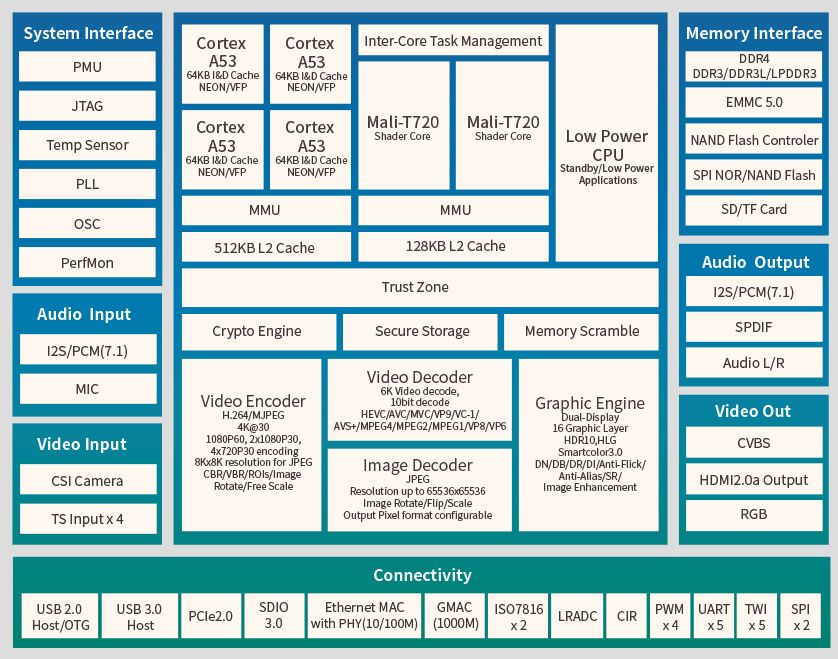

芯片框圖

基本規(guī)格

CPU

? Quad-core 64-bit ARM Cortex?- A53

? Integrated multimedia acceleration engine - NEON
? Hardware Java acceleration
? Integrated hardware floating-point coprocessor

GPU

? High-performance multi-core GPU Mali T720
? OpenGL ES3.1/3.0/2.0/1.1
? Microsoft DirectX 11 FL9_3
? ASTC(Adaptive Scalable Texture Compression)
? Floating point operation greater than 70 GFLOPS

Video Decoding

? H265/HEVC Main/Main10 profile@Level5.2 High-tier ;4K@60fps, up to 6Kx4K@30fps
? H264/AVC BP/MP/HP@level5.1, MVC, 4K@30fps
? VP9，Profile 0/2, 4K@30fps
? AVS+/AVS JIZHUN profile@level 6.0, 1080P@60fps
? Supports Frame Buffer Compression（FBC）
? Output pixel format configurable,YUV420/YV12/NV12/…

Peripheral Interfaces

? One USB3.0 host port
? One USB2.0 otg port ,one USB2.0 host port
? Supports PCIe 2.0 interface
? 10/100 Mbit/s Ethernet port, E-PHY integrated
? Giga Ethernet MAC

Image Decoding

? Real-time image decoding- Maximum resolution up to 65536 x 65536
? Integrated JPEG hardware decoder
? Configurable output pixel format- YUV420/YV12/NV12/…

Video&Image Encoding

? H264 BP/MP/HP@level 4.2 video encoding，up to 4K@30fps
? Supports 1x1080P@60fps/2x1080P@30fps/4x720P@30fps simultaneous encoding
? Low-latency encoding

Audio En/Decoding

? MPEG-1，MPEG-2（L1/L2/L3），MP3，AAC-LC，HE AAC V1/V2，APE，F(xiàn)LAC，OGG，AMR-NB, AMR-WB, G.711(u/a) decoding
? Dolby Digital/Dolby Digital Plus decoding（option）
? Dolby DMA2.0 audio effect（option）
? DTS-HD decoding（option）
? Dolby Digital/DTS transparent transmission

Memory

? DDR4/DDR3/LPDDR3 interface

? EMMC Flash interface, supports EMMC5.0

Security Processing

? Protection for JTAG and other debugging port
? HDCP 2.2/1.4 protection for HDMI outputs
? Trusted execution environment(TEE)
? Digital rights management(DRM)
? Mainstream advanced CA
? Secure boot
? Secure Storage
? Secure upgrade
