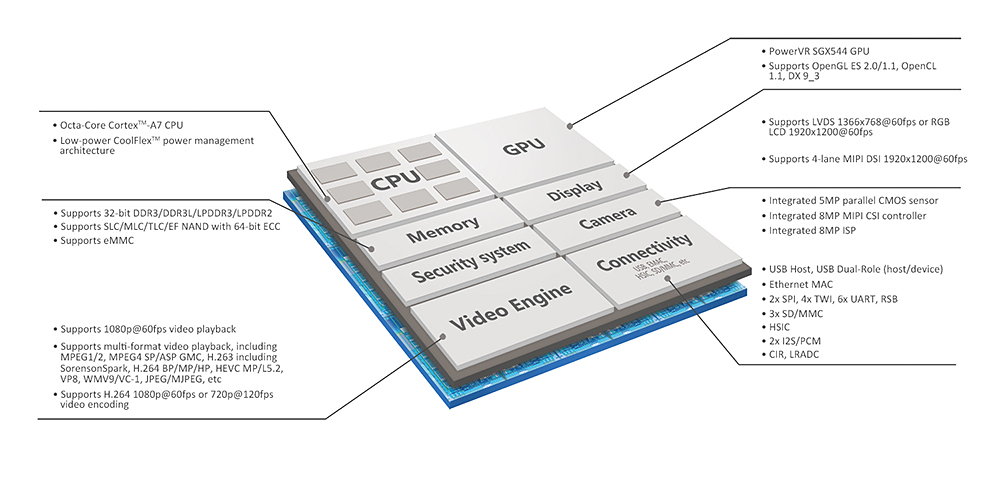

CPU
? Octa-Core Cortex?-A7 CPU
? Low-power CoolFlex power management architecture
GPU? PowerVR SGX544 GPU
? Supports OpenGL ES 2.0/1.1, OpenCL 1.1, DX 9_3
Video? Supports 1080p@60fps video playback
? Supports multi-format video playback, including H.264 BP/MP/HP, H.265/HEVC MP/L5.2, VP8/VP9,MPEG1/2, MPEG4 SP/ASP GMC, H.263 including Sorenson Spark, WMV9/VC-1, JPEG/MJPEG, etc
? Supports H.264 1080p@60fps or 720p@120fps video encoding
|
Memory? Supports 32-bit DDR3/DDR3L/LPDDR3/LPDDR2
? Supports SLC/MLC/TLC/EF NAND with 64-bit ECC
? Supports eMMC
Camera? Integrated 5MP parallel CMOS sensor
? Integrated 8MP MIPI CSI controller
? Integrated 8MP ISP
Package? FCBGA 345
? 14mm x 14mm size
Process? 28nm HPC
|
Display? Supports 4-lane MIPI DSI 1920x1200@60fps
? Supports RGB LCD 1920x1200@60fps or LVDS 1366x768@60fps
Connectivity? USB Host, USB Dual-Role (host/device)
? Ethernet MAC
? 2x SPI, 4x TWI, 6x UART, RSB
? 3x SD/MMC
? HSIC
? 2x I2S/PCM
? CIR, LRADC
|
